Labyrinth Seals

Custom-Engineered for Efficiency

Labyrinth seals are a critical component applied across rotating equipment to seal high pressure areas from low pressure areas and prevent contamination of the process. Designed as a non-contacting seal with a precise clearance over the rotor, labyrinth seals directly affect equipment efficiency.

As with all Bearings Plus solutions, our labyrinth seals are custom-engineered for each application. Design factors include seal arrangement, operating temperatures, pressures, speed, process make-up, and thermal expansion, among others.

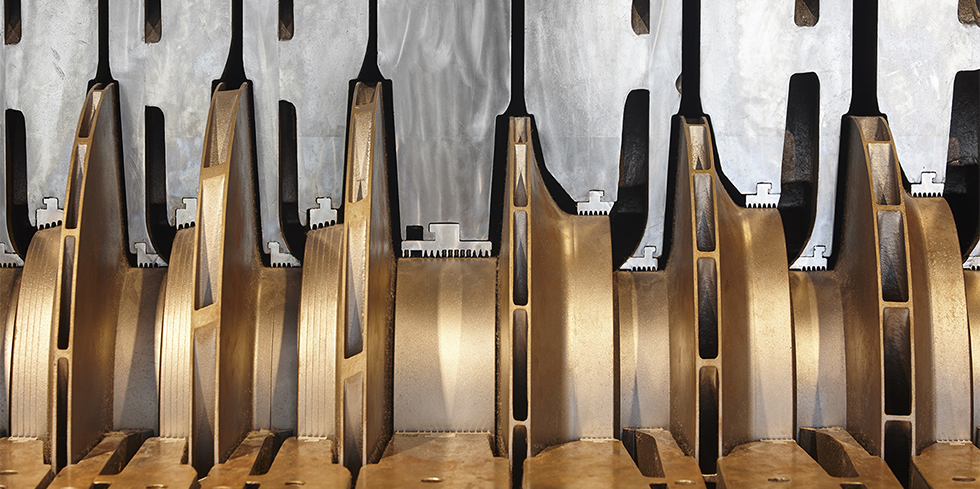

Gas compressor interior

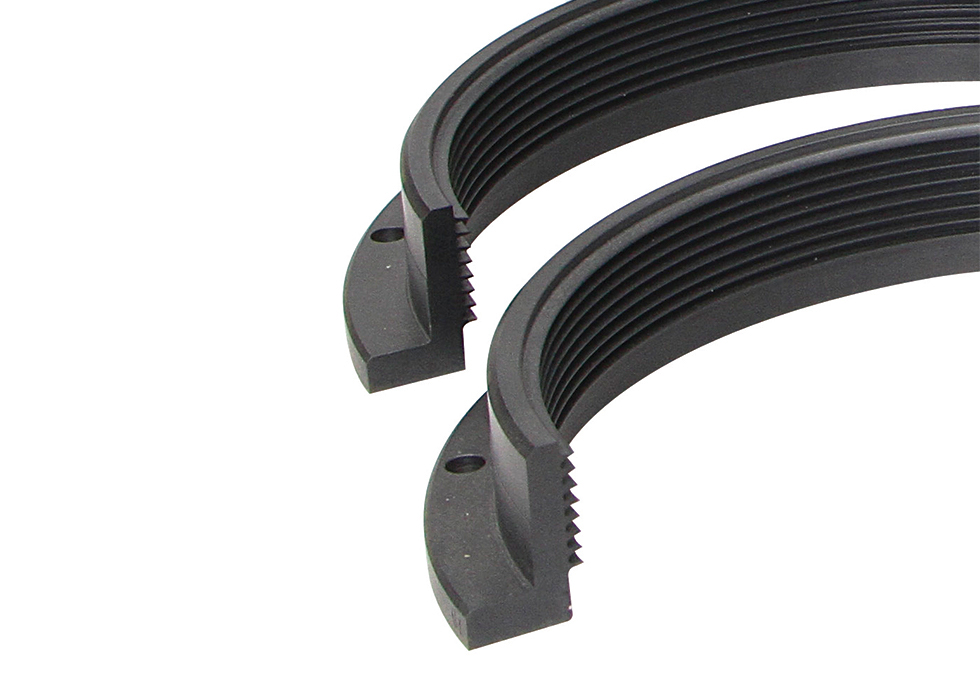

Thermoplastic labyrinth seal closeup

Thermoplastic Laby Seal Advantages

  • Tighter seal clearances
  • Reduced leakage
  • Improved efficiency
  • Option of straight or slanted teeth
  • Corrosion resistance for operation in a variety of fluids

Thermoplastic Material Options

  • Torlon® polyamide-imide*
  • Fluorosint® enhanced PTFE
  • PEEK

*Torlon® is a product and registered trademark of Solvay.
Fluorosint® is a product and registered trademark of the Quadrant Group.

Typical Applications

  • Land-based gas turbines
  • Utility steam turbines
  • Centrifugal compressors
  • Turbo-expanders
